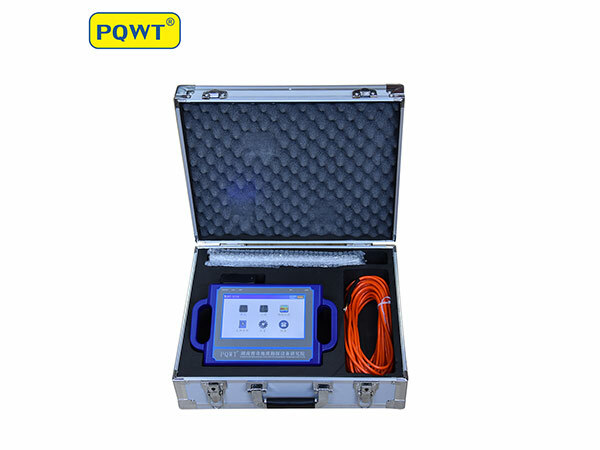

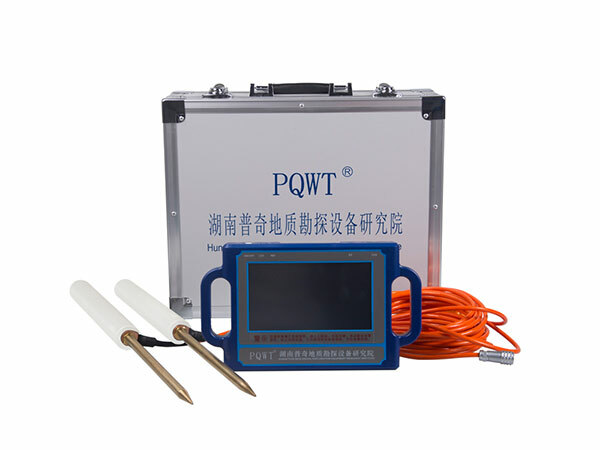

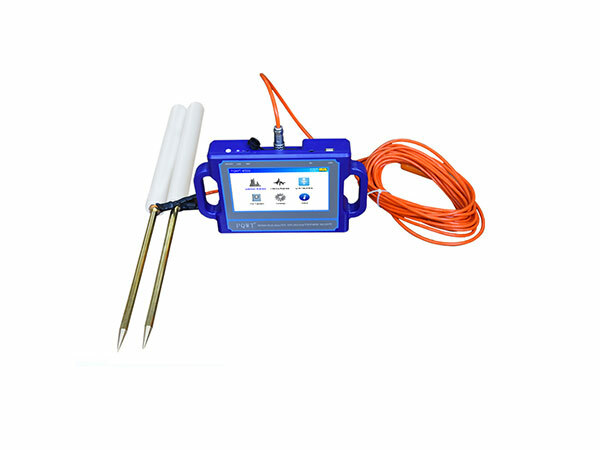

PQWT-S500 Ground Water Detection With 100m/150m/300m/500m Optional Depth

PQWT-S500 Automatic mapping water detector it is based on the field source of earth's electromagnetic field and differences in conductivity of different underground geological structures, to study the variation law of electric field components at different frequencies to study the geological structure and changes. Changes in geological structure are displayed in real-time through multiple curves. Automatic mapping geological profile by one key operate easily, get rid of complicated computer graphics. Geological structure and specific information such as aquifers, fractures, faults, and caves can be easily analyzed through automatic mapping curve and profile on site . The device can be widely used in different terrains such as plains, hills, mountains, plateaus, and basins for rapid analysis of geological structure changes and determines the well locations, aquifers, and aquifer depth.

SPECIFICATIONS
Technical Parameter
Model: PQWT-S500
Measuring depth: 0-100/ 0-150/ 0-300/ 0-500m
Measuring frequency: Single frequency, three frequency, 36/ 48 / 56 frequency
Power supply: Battery Model 26650*2pcs  # 4000mAh Rechargeable lithium battery
A/D conversion: 16-bit 1Msps
Measuring range: 0mV－2000mV The instrument automatically switches the range
Measuring accuracy: 0.001 mV
Measurement channel: Eight channels
Unit of measurement data: The electric field components of different frequencies of the earth electromagnetic field △Vs (mV)
Channel gain: 0~500,000 times
Languages: English; Spanish; French; Arabic; Russian; Polish
Power consumption: About 4W
Display: Industrial-grade 7-inch high-definition digital touch LCD screen
Working hours: 6-8 hours

COMPETITIVE ADVANTAGE
1. Be suitable for plain, hill, mountain land, highland, basin all kinds of geologic structure application;
2. Automatic mapping in the instrument, get drilling position and depth result at site.
3. Professional user group offers 24 hours after sale service.
4. The average accuracy of more than 92% from user’s feedback.
5. Six languages including English/Spanish/French/Arabic/Russian/Polish, are optional. We can custom the language.
6. It is widely used for drinking water, agricultural irrigation water detection.
7. Non-professionals can learn the operation way in 5 minutes.
8. only 1-2 people can operate.
