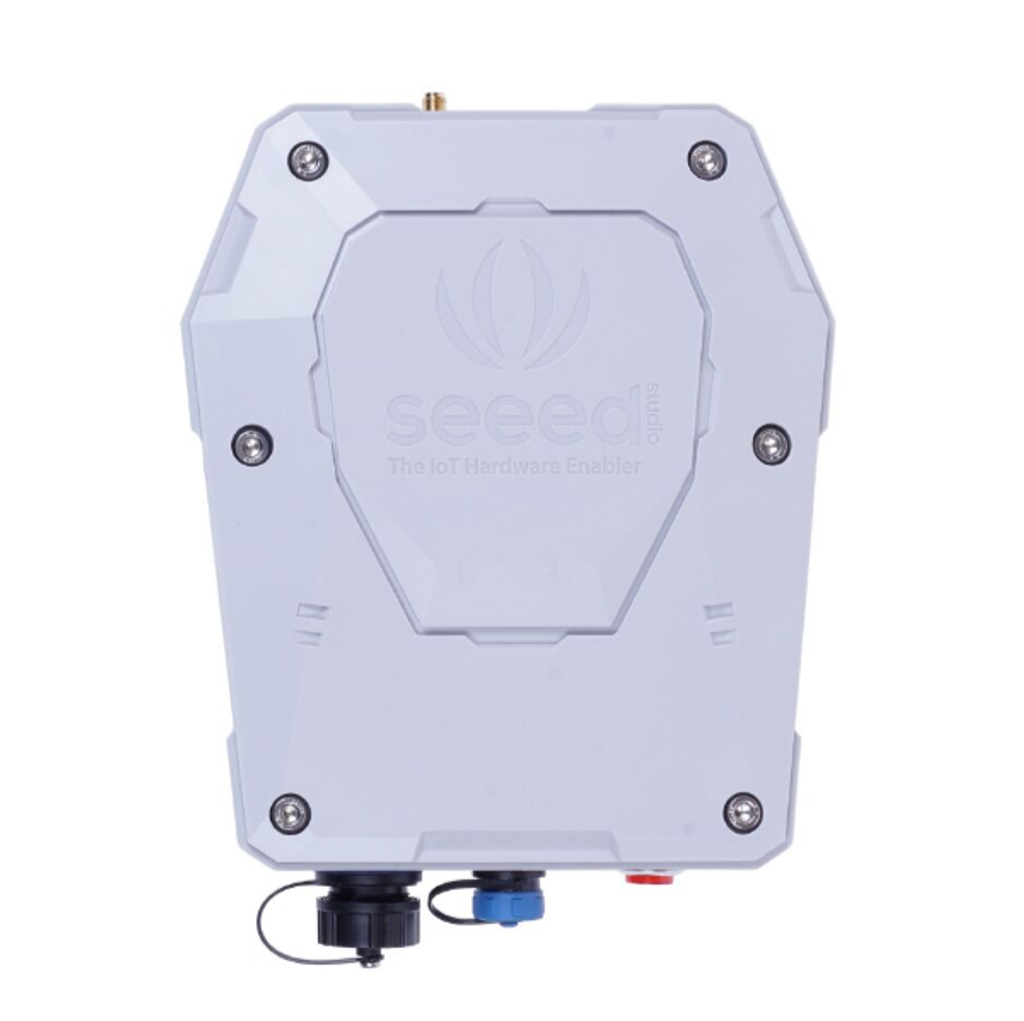

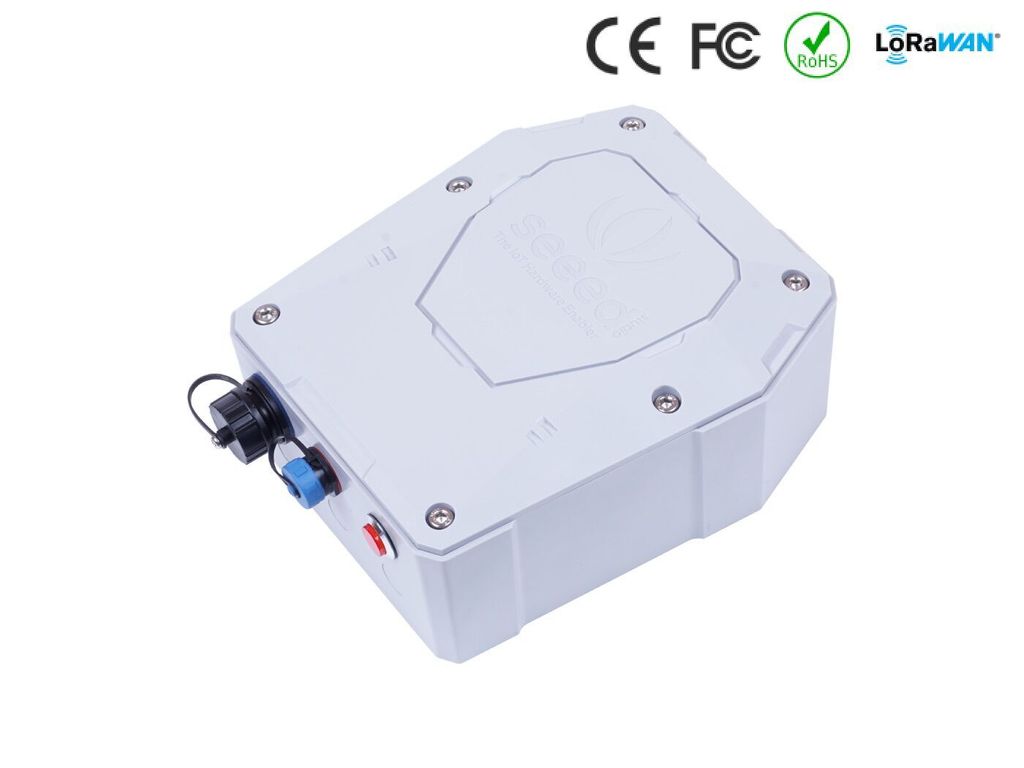

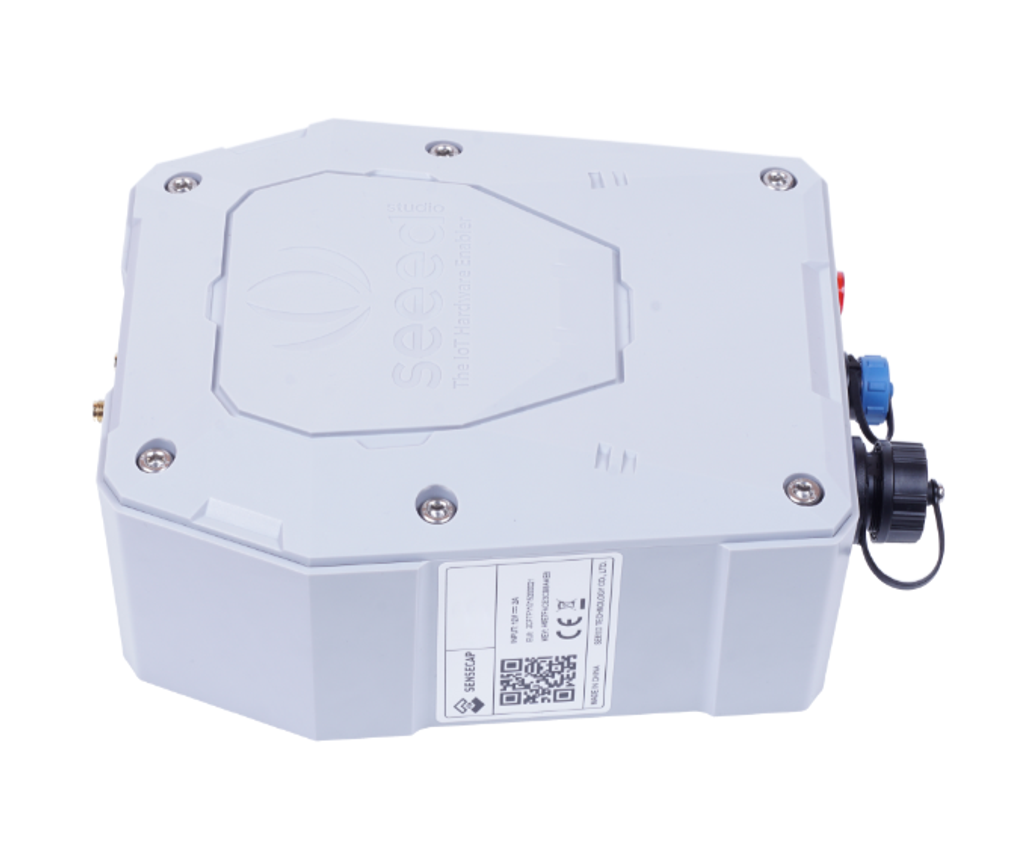

SenseCAP Outdoor Gateway - LoRaWAN AS923

*PRICE UPON REQUEST, PLEASE CONTACT US FOR PRICE OR QUOTATION THANK YOU*

Key Features

• High-performance Cortex A8 1GHz processor, Linux system.
• Support LoRaWAN protocol Class A, Class C and multiple ISM bands, including CN470, EU868, US915, AS923, and AU915, enabling seamless integration with ultra-low-power SenseCAP Sensors.
• Support multiple methods to access the network: 4G, Ethernet
• Ultra-wide-distance transmission: with 8 RX and 1 TX transceiver configuration and a maximum transmit power of 27dBm, it can cover distances of up to 10km in line-of-sight scenarios and 2km in urban environments.
• Industrial grade protection and easy to deploy: IP66 enclosure, temperature -40℃~70℃, suitable for outdoor applications. It offers easy deployment and rapid provisioning simplifying the installation process for convenient setup.

Description

SenseCAP Gateway - LoRaWAN is based on LoRaWAN protocol, applicable for low-power consumption, long-range environmental data collection, and remote monitoring scenarios such as smart agriculture and smart city.

As the central device of SenseCAP LoRaWAN network, the gateway is used for collecting data from different SenseCAP Sensors and transmitting the data to the cloud platform via cellular LTE or Ethernet. Equipped with a high-performance processor AM3358 and telecom operator-level Long Range chip SX1301, this device ensures robustness and high performance in large-scale networks. Mutual authentication and encryption are established in the whole network to increase security.

The gateway is designed with an IP66 enclosure and supports an extended operating temperature range, making it suitable for industrial applications in both indoor and outdoor severe environments.

Specification
