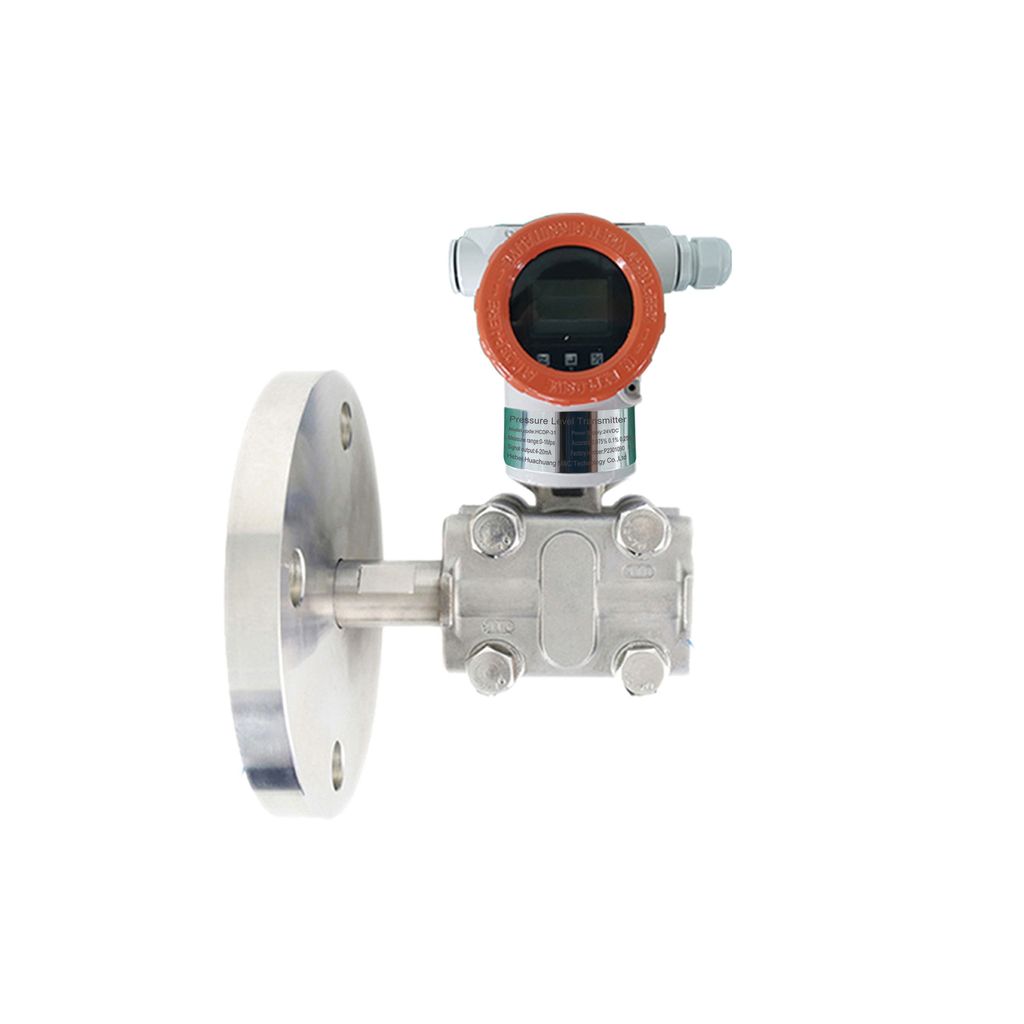

HCCK HCDP-31 Differential Pressure Transmitter for Liquid Level, Pressure Measurement

*PRICE UPON REQUEST, PLEASE CONTACT US FOR PRICE OR QUOTATION THANK YOU*

Application：Liquid Level，Pressure，Measurement

Sensor Type：Single Crystal Silicon Differential Pressure Sensor

Measuring Range： (Single End Overpressure ≤16MPa)

Accuracy：0.1%，0.2%

Long-Term Stability：Better Than 0.2%FS Per Year

Medium temperature：（-40~350）℃

Signal Output：Two-Wire System (4-20) mA/HART Protocol

Display：Intelligent housing with LCD and backlight

Protection Grade ：Ex d [ia Ga] IIC T6 Gb

Product introduction

Two-Wire System (4-20) mA/HART Protocol 0.1%，0.2% Single flange differential pressure transmitter

HDCP series Intelligent Differential Pressure Transmitter is a high performance pressure transmitter with the world-leading technology, developed with international advanced monocrystal silicon pressure sensor and patented packaging process. It adopts the patented double overload protection diaphragm design and internal circuit surge protection design, which could measure the gauge pressure, absolute pressure, flow rate, liquid level and density accurately. Designed by high level of integration and modularized circuit technology, achieves the functions of remote transmission, local zero, full range adjustment.

So it could be used in the process control fields of petroleum, chemical, metallurgy, electric power, food, papermaking, medicine, machinery manufacturing, scientific experiment and aviation military industries.

Application case

HCDP-31 differential pressure transmitter is divided into single flange type transmitter and single flange with remote transmission type transmitter.It is mainly used to continuously and accurately measure the differential pressure of liquid, gas, steam and liquid level and other parameters.
