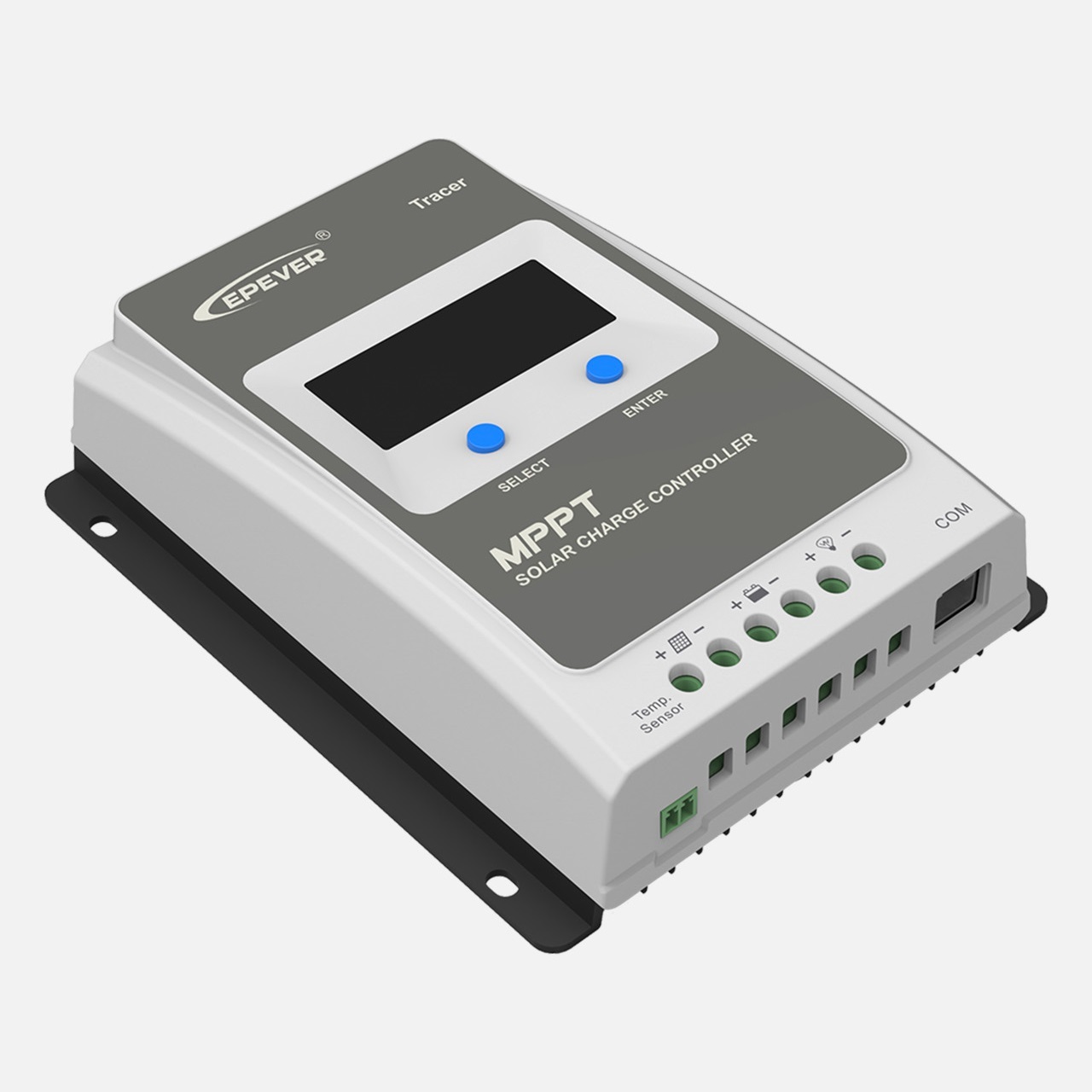

EPEVER® MPPT Solar Charge Controller Tracer 1210AN, 10A, 12V/24VDC

- Charging current: 10A, Max. PV open circuit voltage: 100V, System nominal voltage:12V / 24VDC
- MPPT tracking efficiency over 99.5%, Maximum charge conversion efficiency of up to 98%
- Lead-acid battery: AGM, GEL, Flooded, User; Lithium battery (additional accessories from EPEVER such as eBox-Wifi / Bluetooth, USB-RS485 cable are required for parameter setting of the lithium battery and USER)
- Standard Modbus communication protocol with RS485 interface

Model of manufacturerTracer1210AN
EAN4260558570011
Article number2102410
System nominal voltage12/24VDC Auto①
Related charge current10A
Related discharge current10A
Battery voltage range8～32V
Max. PV open circuit voltage100V② 92V③
MPP voltage range(Battery voltage +2)～72V
Max. PV input power130W/12V 260W/24V
Max. PV Array Power195W/12V, 390W/24V
Self-consumption≤12mA
Temperature compensate coefficient-3mV/℃/2V (Default)④
GroundingCommon negative
RS485 interface5VDC/100mA
Working environment temperature-25℃～+50℃(100% input and output)
EnclosureIP30
Dimension172 * 139 * 44mm
Net Weight0,57kg
