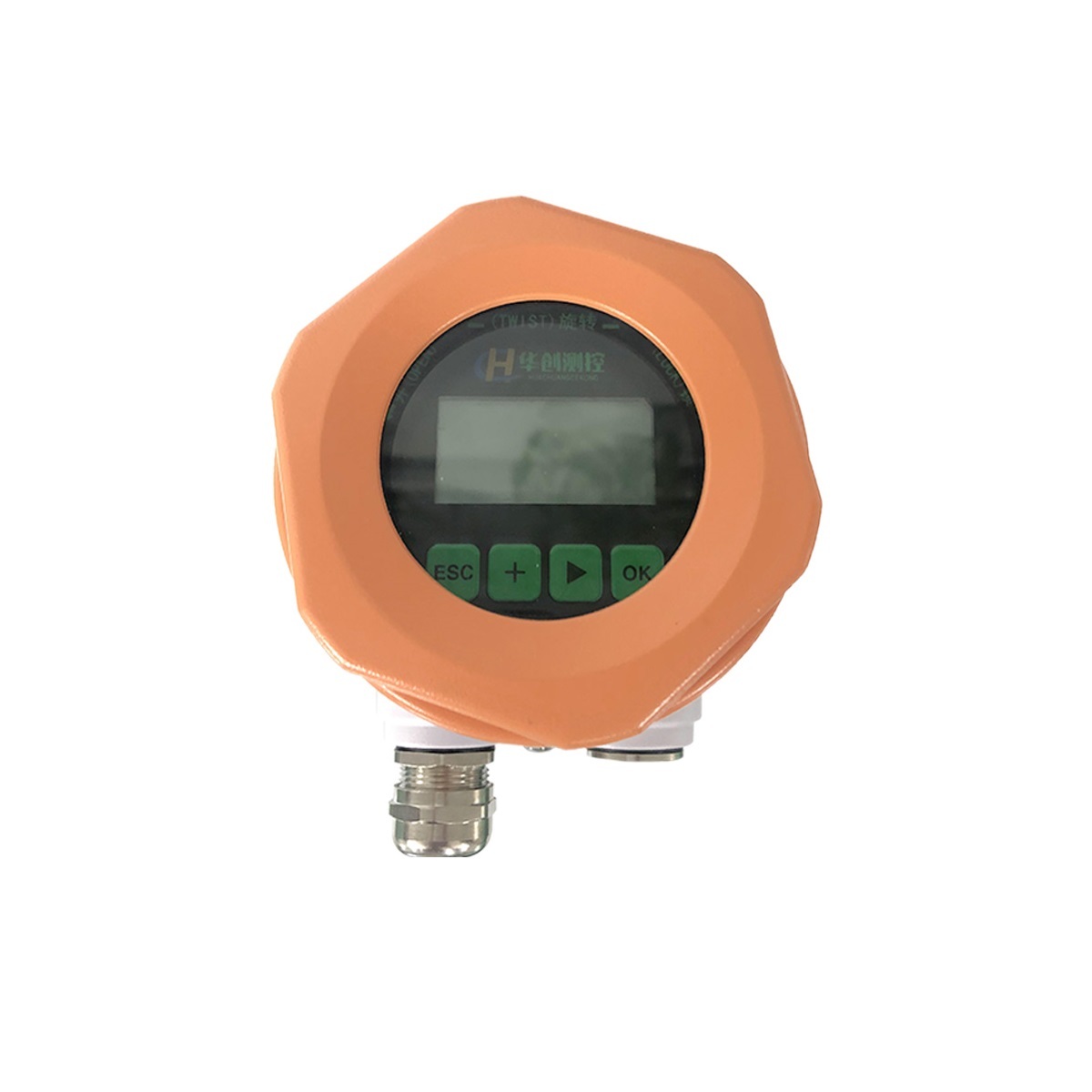

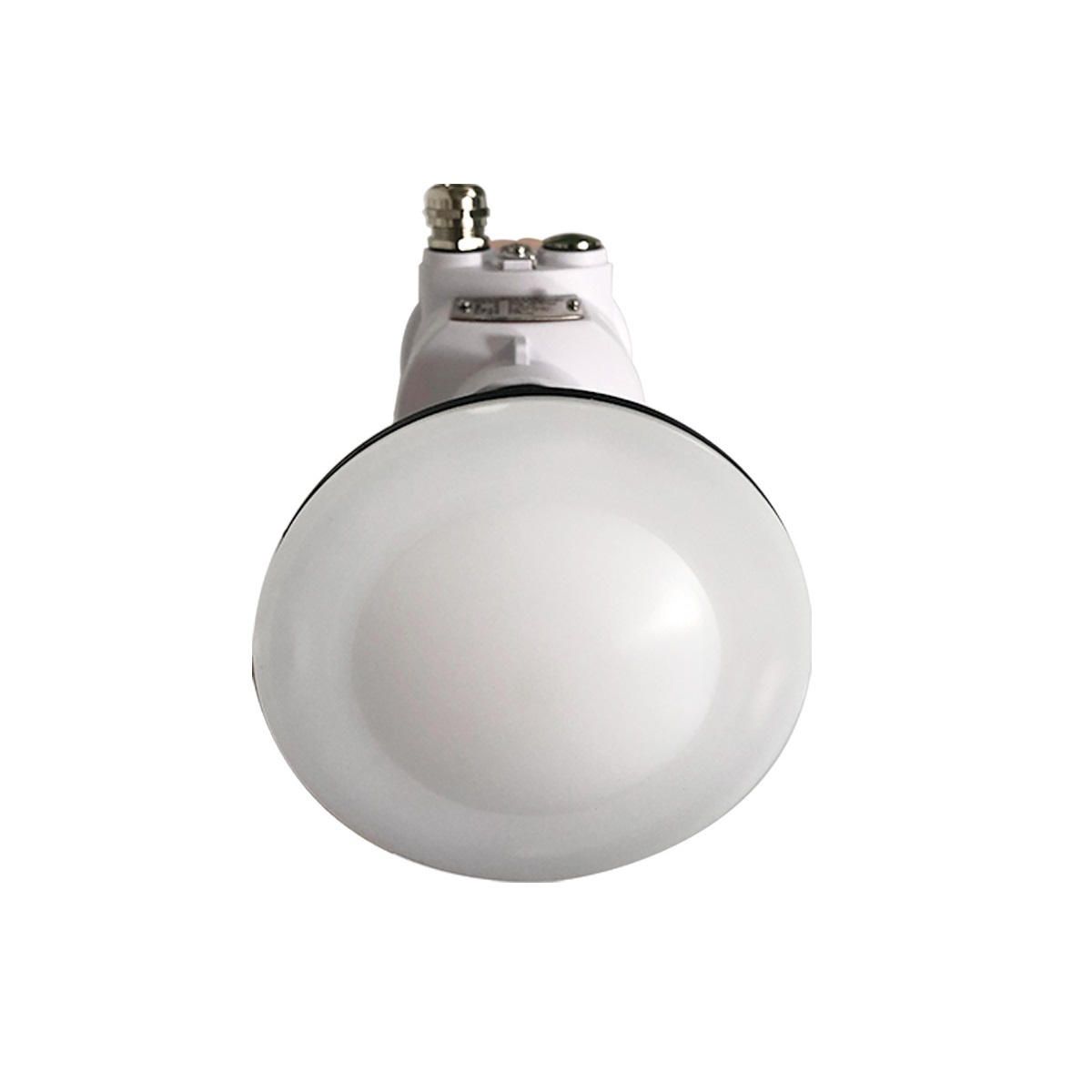

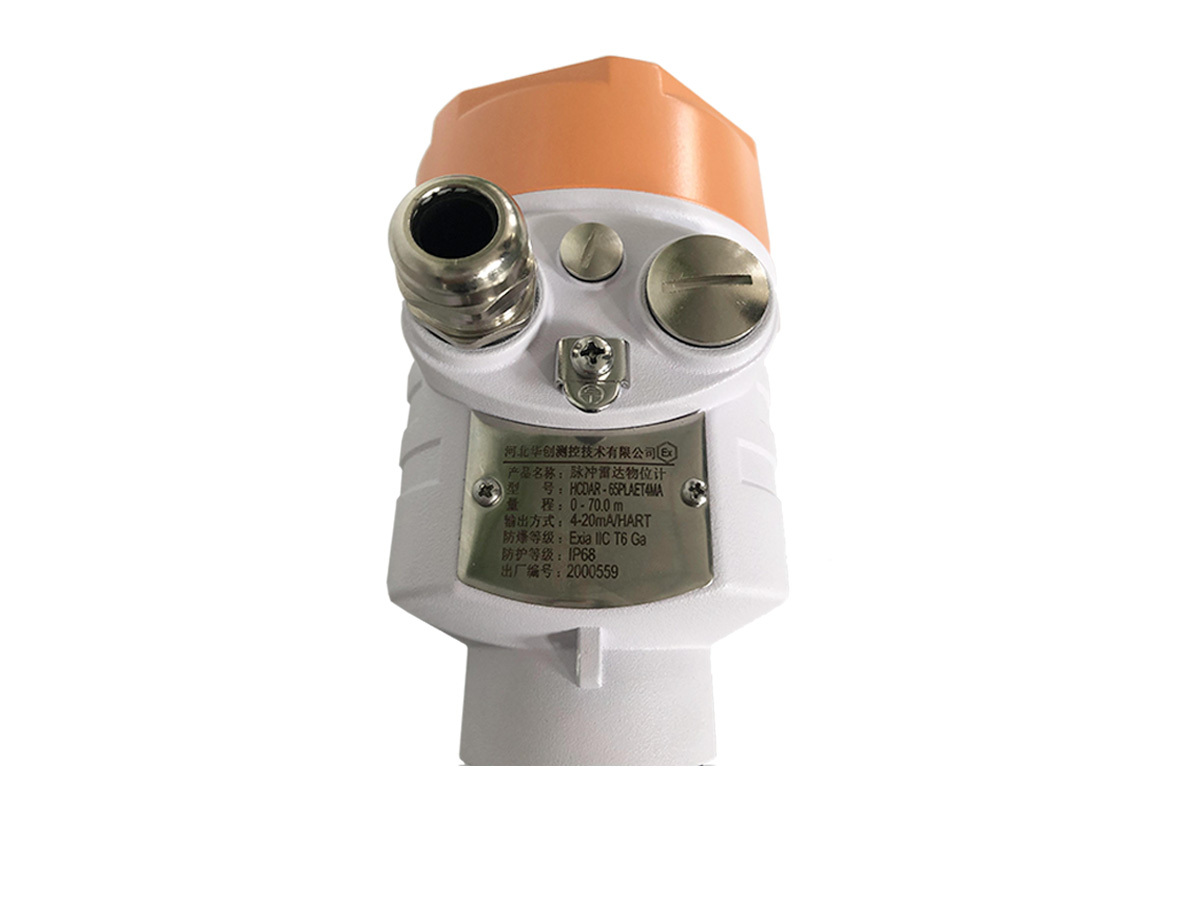

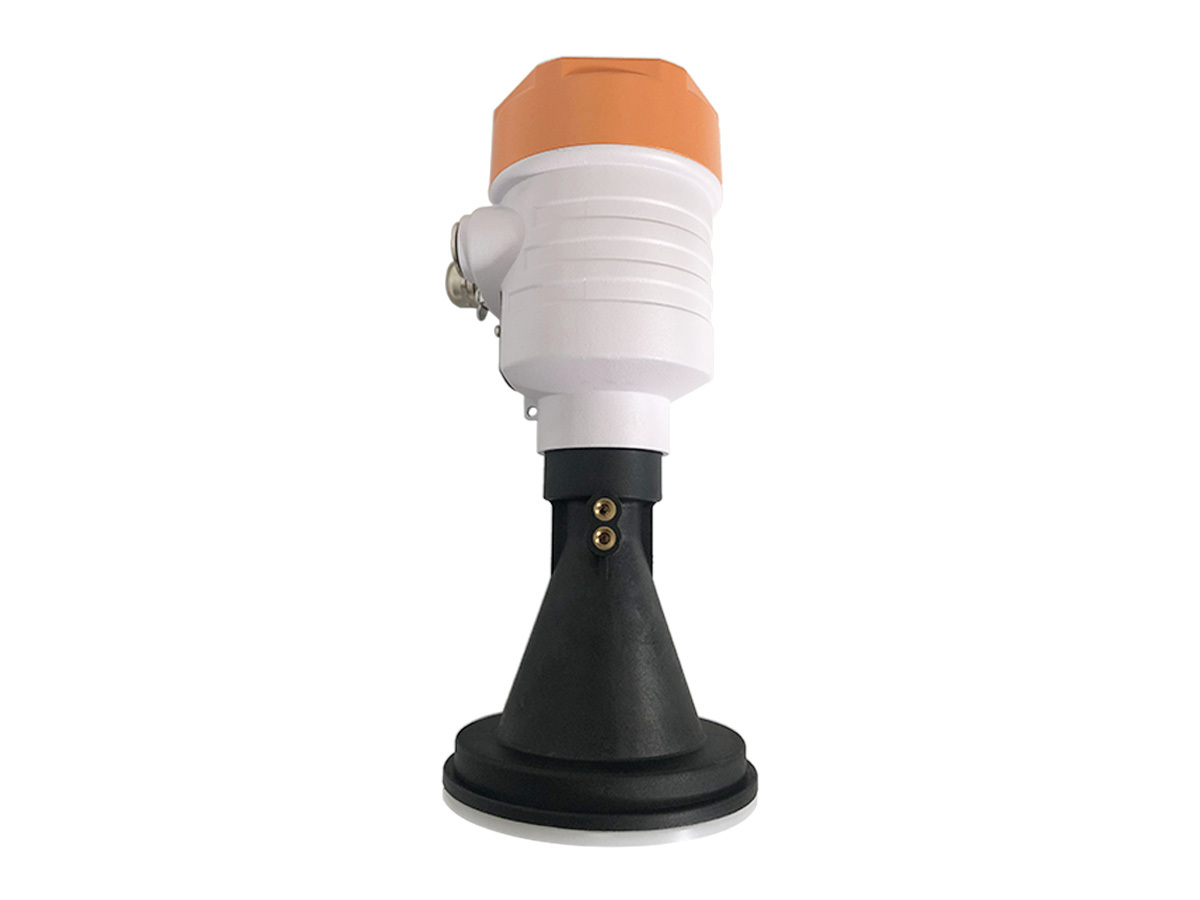

HCCK HCDAR-65 Non Contact Radar Water Level Sensor for River Channel Reservoir Lake Tide 0 - 70m

Application: River Channel Reservoir Lake Tide

Measuring Range: 0～70m

Connection Process: Stents

Medium Temperature :（-40～120）℃

Process Pressure : Atmospheric Pressure

Accuracy: ±5mm

Signal Output : (4～20)mA HART/RS485 MODBUS

Explosion-Proof Grade: Ex ia IIC T1-T6 Ga/Ex d IIC T6 Gb

Protection Grade: IP68

Frequency Range:26GHZ

This series of HCDAR-6X  adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing, the new microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

Advantages

1.small beam angle, energy concentrated, stronger ability anti-interference, the accuracy and reliability are greatly improved.

2.small size antenna, convenient for installing.

3.smaller measuring blind zone, works well for small tank

4.shorter wavelength, more suitable for measuring the level of small particle materials

5.non-contact measurement,  no abrasion, no pollution.

6.signal output has two options: two-wire 4-20mA @HART or four-wire RS485 @MODBUS protocol , four-wire power supply can reach 12V DC as low as possible.

HCDAR-65 is a special hydrological sensor, suitable for all kinds of atmospheric liquid measurement, can cooperate with the wireless intelligent radar used in the hydrological measurement environment, can prevent slight condensation.
